What Stairway information should be included on the floor plan?

What Stairway information should be included on the floor plan?

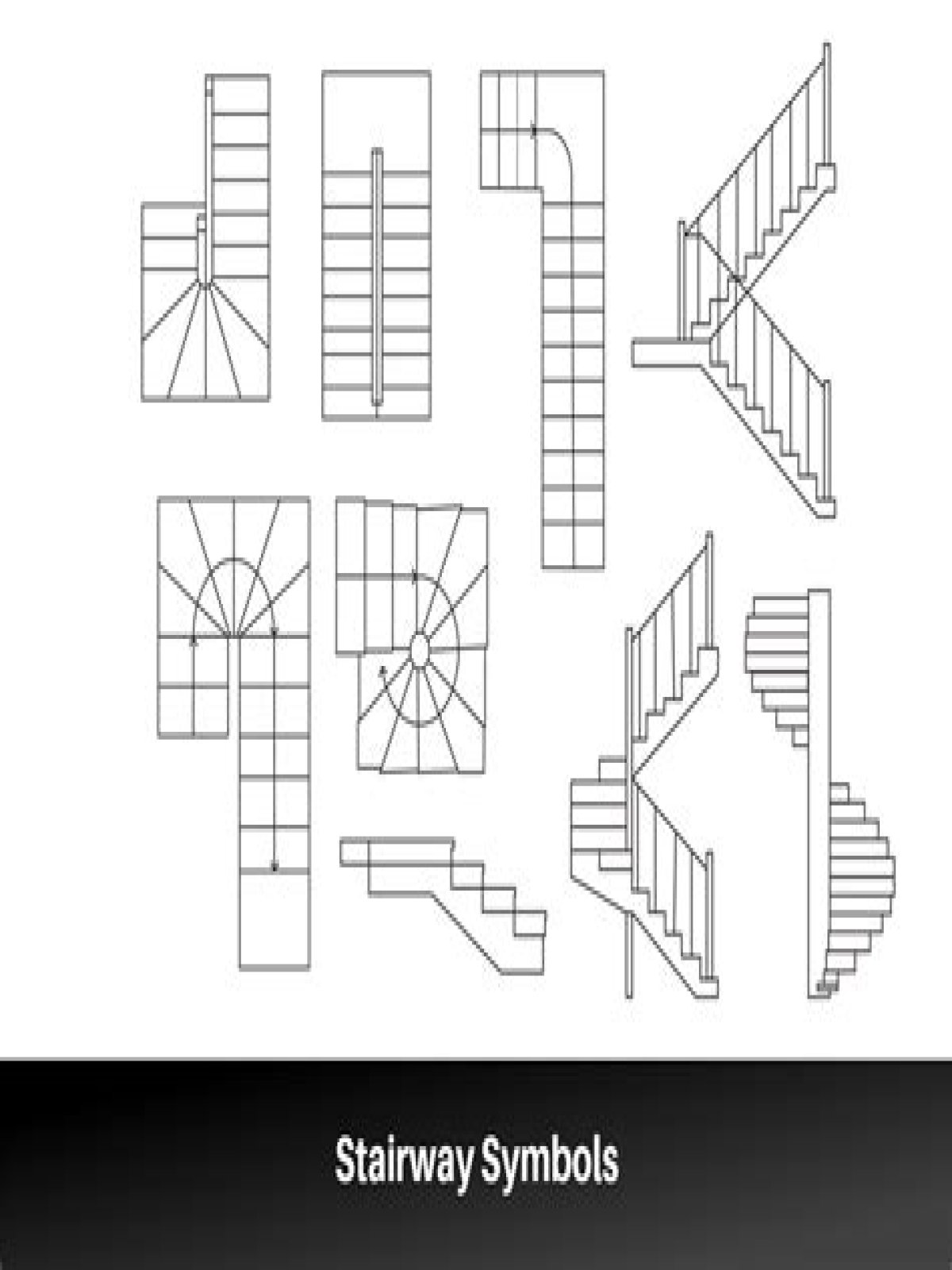

​Information for stairs on floor plan: Direction of flight, number of risers, and width of stairs. ​Information for fireplace on floor plan: basic width, length, location, and shape of opening. ​Either a simplified or detailed (preferred) symbol may be used to identify the fireplace.

Which line type is used to show an archway or plain opening on a floor plan?

Object line 6. Which linetype (symbol) is used to show an archway or plain opening on a floor plan? A. Object line.

What features are generally shown on the floor plan?

In architecture and building engineering, a floor plan is a drawing to scale, showing a view from above, of the relationships between rooms, spaces, traffic patterns, and other physical features at one level of a structure. Dimensions are usually drawn between the walls to specify room sizes and wall lengths.

What is the common scale of most residential floor plans?

The scale of the drawing refers to the ratio used to reduce the size of the real-life building or object down to a size that can be drawn conveniently on a piece of paper. Most building plans are printed onto A3 paper, so a scale of 1:100 is generally used for floor plans.

What are the two methods commonly used to identify a particular elevation?

Elevation is distance above sea level. Elevations are usually measured in meters or feet. They can be shown on maps by contour lines, which connect points with the same elevation; by bands of color; or by numbers giving the exact elevations of particular points on the Earths surface.

Should be used to indicate materials in the floor plans?

Sizes and materials to be used should be indicated on the floor plan. Room names add information, which is important in communicating the plan to others. Dimensions on a floor plan may show the size of a feature or its location.

What is the heaviest line in a drawing?

The heaviest line weight indicates the ground line cut. The next heaviest line weight “profiles the planes closest to the plane of projection” (Ching & Juroszek, 1998, p. 152). Medium line weight indicates distance from picture plane, progressively getting lighter to describe objects further from the picture plane.

What are hidden lines in drawing?

A hidden line, also known as a hidden object line is a medium weight line, made of short dashes about 1/8” long with 1/16”gaps, to show edges, surfaces and corners which cannot be seen. Sometimes they are used to make a drawing easier to understand. Often they are omitted in an isometric view.

What do floor plans measure?

The scale for floor plans can be shown in two different ways: As equivalent measurements, eg 1/8″ = 1′ or 1cm = 1m, “an eighth of an inch represents 1 foot” or “1cm represents 1m” As a ratio eg 1:96 or 1:100, “one to forty eight” or “one to one hundred”

How do you properly read a floor plan?

Your floor plans should show locations of the range and/or cook top, oven, fridge and freezers, microwave, sink, and dishwasher. All of these details will be shown and labeled to help visualize your space. Other details can include: upper cabinet locations, flush eating bars and cabinet voids.

How does scaling work on floor plans and why is it used?

Scales. Drawings are done to a scale. This means that standard fractions are used in relation to the actual size of the object being drawn and the dimensions used on the diagram. Architectural drawings are done in scales that are smaller than the real size.

What are the symbols in an architectural floor plan?

The symbols below are used in architectural floor plans. Every office has their own standard, but most symbols should be similar to those shown on this page. The number is relative to the room that the door leads to. Help make Archtoolbox better for everyone.

What is an arrow on a floor plan?

Fall / drainage – arrow points downwards, towards floor waste / drain. Recessed object – an object recessed into a particular wall or surface. Surface-mounted object – an object mounted directly on a wall or surface. Free-standing object – an object not connected to the adjacent wall or surface.

How are the walls represented in a floor plan?

The walls are the strongest visual elements in a floor plan. Walls are represented by parallel lines and may be solid or filled with a pattern. Breaks in walls indicate doors, windows and openings between rooms.

Which is the correct scale for an architectural plan?

The below list provides a guide for the metric and imperial scales that we suggest are used for the most common architectural drawings: 1:250 (1”=20’0”) – Site plan (note that 1:250 is not a common metric scale) 1:25 (3/4”=1’0”) – Room plans, interior elevations (note that 1:25 is not a common metric scale)
