What are the two functions of the reservoir in a hydraulic system?

What are the two functions of the reservoir in a hydraulic system?

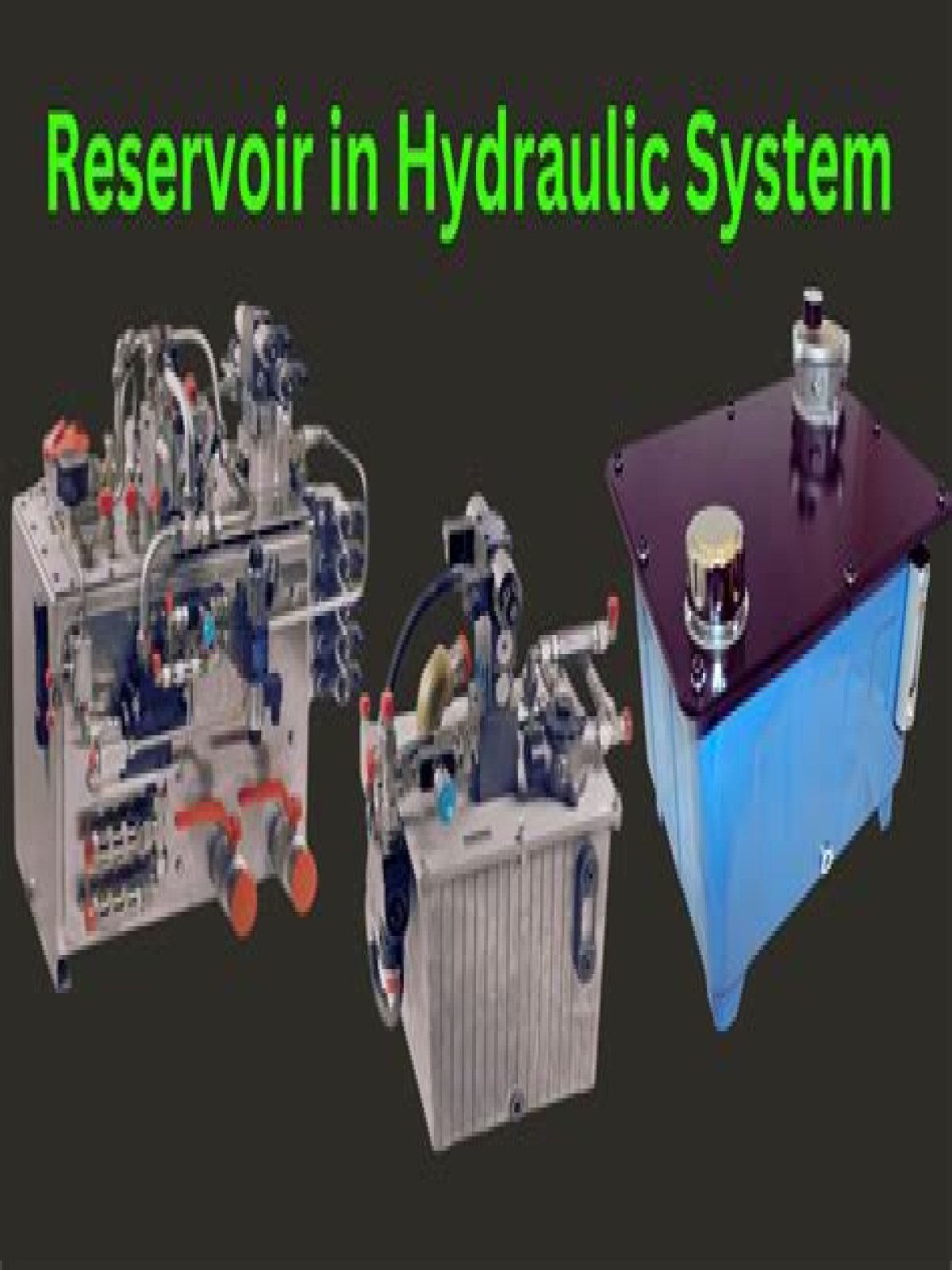

The purpose of the hydraulic reservoir is to hold a volume of fluid, transfer heat from the system, allow solid contaminants to settle and facilitate the release of air and moisture from the fluid. The hydraulic pump transmits mechanical energy into hydraulic energy.

What are the different parts present in hydraulic tank?

Essential components of a hydraulic system

• Reservoir oil tank.
• Piping.
• Hydraulic pump.
• Power source.
• Actuator.
• Valves.
• Filters.

What is the purpose of pressurizing a hydraulic reservoir?

One reason for using a pressurized reservoir is to provide the positive inlet pressure required by some pumps — usually in line piston types. Another reason is to force fluid into a cylinder through an undersized prefill valve.

What is hydraulic principle?

The basis for all hydraulic systems is expressed by Pascal’s law which states that the pressure exerted anywhere upon an enclosed liquid is transmitted undiminished, in all directions, to the interior of the container. This principle allows large forces to be generated with relatively little effort.

What are the 4 main components of hydraulic and pneumatic systems?

Hydraulic and Pneumatic Control System components include pumps, pressure regulators, control valves, actuators, and servo-controls. Industrial Applications include automation, logic and sequence control, holding fixtures, and high-power motion control.

Which of the following is a disadvantage of a hydraulic system?

Hydraulic System Disadvantages If hydraulic fluid leaks in hot areas, it may catch fire. If hydraulic lines burst, they can cause serious injuries. Take care when handling hydraulic fluids, as too much exposure can lead to health issues. Hydraulic fluids are also corrosive, but some types are less so than others.

What is a hydraulic through frame slideout system?

Rev: 07.09

How does Lippert hydraulic through frame slideout system work?

Description The Lippert Hydraulic Through Frame Slideout System is a rack and pinion guide system, utilizing a hydraulic cylinder to move the room assembly. The power unit drives the cylinder rod in a forward and backward motion to move the slide room in and out.

What do you need to know about a slideout system?

After servicing the slideout system in any way, be sure to check the following: 1. Slideout stops are installed and adjusted properly. 2. Head assemblies are installed and adjusted properly. 3. System is mounted properly. 4. Cross shafts are mounted properly and clear all other components.

How do you retract a slideout room?

Retracting Slideout Room 1. Verify the battery is fully charged and hooked up to the electrical system. 2. Press and hold the IN/OUT switch in the IN position until the room is fully retracted and stops moving. 3. Release the switch. This will lock the room into position.

What causes a slideout in a hydraulic system?

A hydraulic system leak can be another cause of slideout problems. The first thing to check is your hydraulic fluid reservoir to ensure there is enough fluid in the system. When your slideouts are out, or your leveling legs are down, the reservoir will have a lower fluid level.

Description The Lippert Hydraulic Through Frame Slideout System is a rack and pinion guide system, utilizing a hydraulic cylinder to move the room assembly. The power unit drives the cylinder rod in a forward and backward motion to move the slide room in and out.

What causes a slide out on an RV?

If the meter shows that the motor is getting the proper voltage, but there is no movement, then the issue is most likely with the motor. If the motor runs but the slideout doesn’t move, you may have a hydraulic leak or another hydraulic system issue. A hydraulic system leak can be another cause of slideout problems.

How can I tell if my slide out pump is leaking?

If the motor/pump runs but the slideout doesn’t move and there is low / no fluid in the reservoir, then you probably have a fluid leak. You will need to trace the hydraulic lines from the pump to the operating rams to see if you can find a leak in the system. Check your owner’s manual to see specifics about your hydraulic system.
