Equipotential lines provide a quantitative way of viewing the electric potential in two dimensions. Every point on a given line is at the same potential. Such maps can be thought as topographic maps.
Why do equipotential lines become circular?
For a single, isolated point charge, potential is inversely dependent upon radial distance from the charge. Therefore, equipotential lines for a single point charge are circular, with the point charge at the center. When multiple, discrete charges interact, their fields overlap, meaning their potentials combine.
How are Equipotentials related to electric field lines?

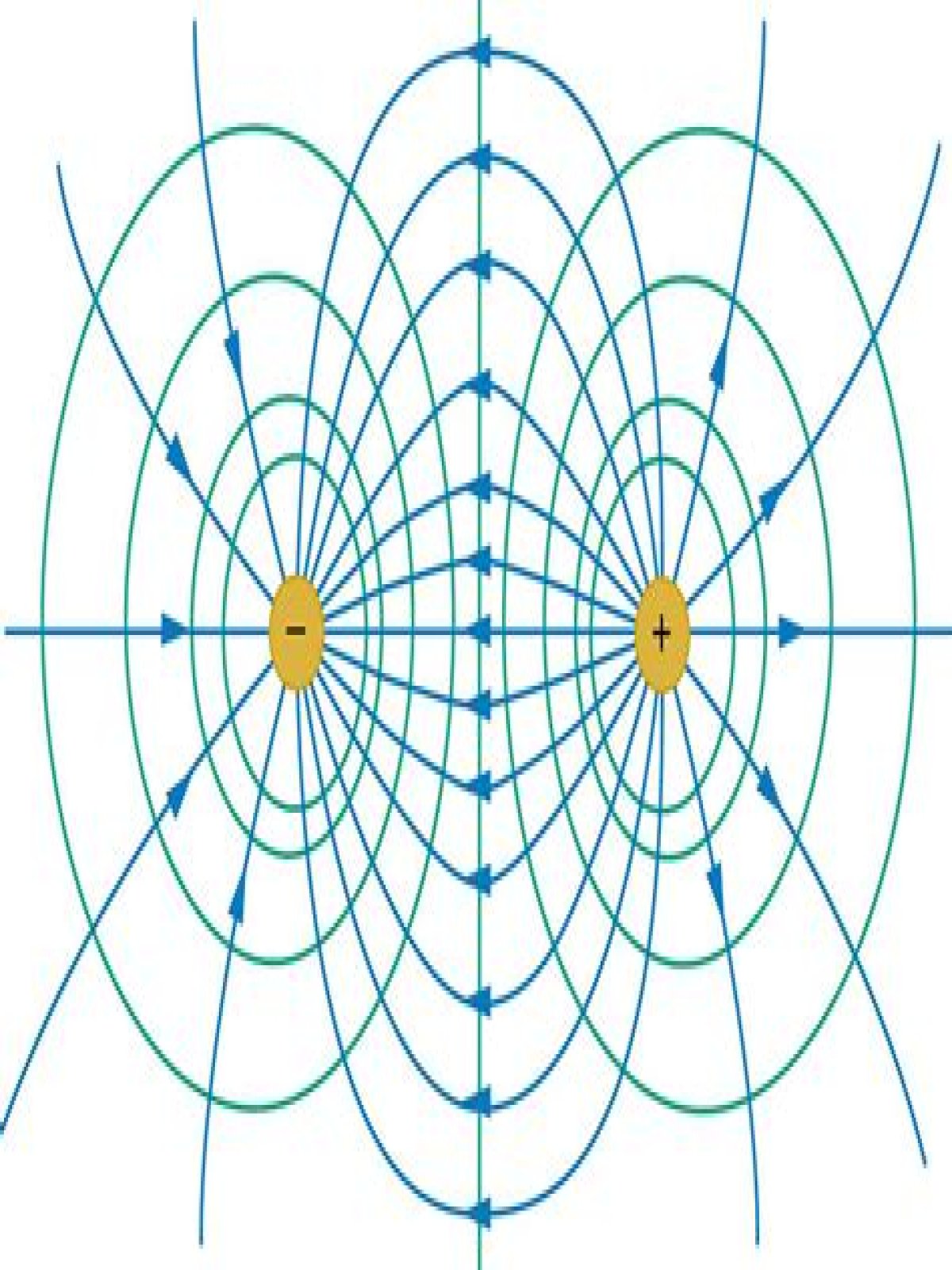

Equipotential lines are lines connecting points of the same electric potential. All electric field lines cross all equipotential lines perpendicularly.
Where is the electric field the strongest?
The field is strongest where the lines are most closely spaced. The electric field lines converge toward charge 1 and away from 2, which means charge 1 is negative and charge 2 is positive.
What is equipotential line in soil?
Flow lines represent the path of flow along which the water will seep through the soil. Equipotential lines are formed by connecting the points of equal total head.
What’s the meaning of equipotential?
Definition of equipotential
: having the same potential : of uniform potential throughout equipotential points.
Which equipotential line has the greatest potential?
The equipotential lines can be drawn by making them perpendicular to the electric field lines, if those are known. Note that the potential is greatest (most positive) near the positive charge and least (most negative) near the negative charge.
Do equipotential lines have direction?
Equipotentials simply connect all the points that have the same potential energy (if a particle was there), and so you can move along them and do no work, and as such have no associated direction (unlike field lines).
What is the difference between equipotential lines and surfaces?
An equipotential line is a line along which the electric potential is constant. An equipotential surface is a three-dimensional version of equipotential lines. Equipotential lines are always perpendicular to electric field lines.
Why is there unequal spacing between the equipotential lines?
Note that the potential difference (which is more important than the value of the potential at a point) between one equipotential line and the next is a constant value, but the lines get further apart as you move away from the object because the field decreases – the farther you are from the object, the smaller its
What is equipotential and equipotential surface?
An equipotential line is a line along which the electric potential is constant. An equipotential surface is a three-dimensional version of equipotential lines. Equipotential lines are always perpendicular to electric field lines.
What is equipotential line in fluid mechanics?
Equipotential line is basically defined as the line along which the velocity potential (ϕ) is constant.
Can different equipotential lines cross?
Equipotential lines at different potentials can never cross either. This is because they are, by definition, a line of constant potential. The equipotential at a given point in space can only have a single value.
