Why is the pilot-operated check valve used in a clamping operation?

They can lock loads in a leak free mode and they are well suited for many clamping applications or to prevent a negative load from falling down in case of hose failure. They should be fitted as close as possible to the actuator, either flange mounted or connected through metallic pipe.

What is the purpose of pilot cylinder?

Developed specifically for the fire protection industry, the Pilot Cylinder Assembly allows pneumatic actuation of extinguishing systems from an electrical input from a control panel. The Pilot Cylinder features electrical operation, with a mechanical manual override option.

What is the function of a pilot to close check valve in a pneumatic system?

Pilot operated check valves (PO Check Valves) are typically used to hold pressure in a cylinder in the event of a drop in pressure or a total loss of pressure. The pneumatic check valve locks air in the device until the pilot signal is energized, at which time the valve opens and air evacuates the cylinder.

What is a pilot to close check valve?

Description. Pilot to close check valves allow flow to pass in one direc- tion, with a low pressure drop to prevent reverse flow. When the pilot pressure is applied, flow is prevented in either direction. The pilot ratio of 2:1 allows a lower pressure in the pilot line to hold the valve closed.

Which valve is used to block the accumulator from the system for the purpose of safety?

Blocking of accumulator by needle valve for safety – Hydraulics & Pneumatics.

What is the use of four way valve?

4-way valves are one of the most commonly used pneumatic components for directional control. By providing four distinct flow paths, these valves make it easy to reverse the motion of a cylinder or motor.

What is CO2 pilot cylinder?

Description. This device is used to automatically monitor the contents of the CO2 cylinder. When the CO2 gas falls the indicator on the device will show that it is empty and an optional Micro-switch can be installed to send a signal to the control panel.

What is the minimum requirement for CO2 gas to be released to fight a fire in the engine room?

To obtain a total flooding of engine room, about 35% by volume of CO2 is required in 2 minutes. This will reduce the oxygen content of the air in engine room to less than 15% to extinguish the fire. At this CO2 concentration human life cannot be supported.

What is a pilot pilot valve?

A pilot valve is a small valve in size, which controls a limited flow control feed to a separate piloted valve. Typically, this separate valve controls a high pressure or high flow feed in the fluid control system.

How does a pilot check valve differ from a simple check valve?

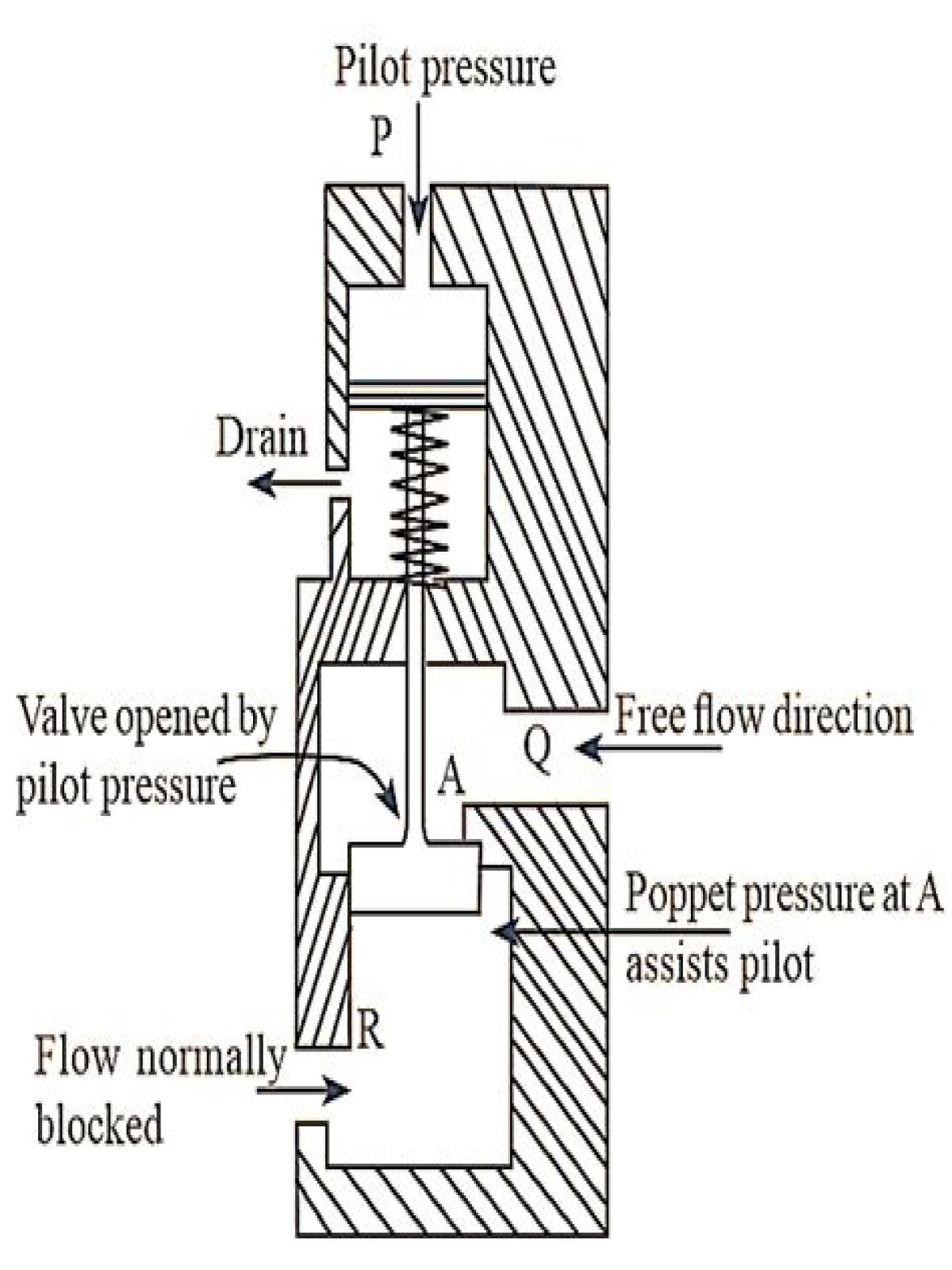

Check valves have excellent sealage in the closed position, but a simple check valve cannot be used in the system in Figure 4.22 because flow is required in both directions. A pilot-operated check is similar to a basic check valve but can be held open permanently by application of an external pilot pressure signal.

How does a pilot-operated directional control valve function?

These valves are composed of a solenoid operated pilot valve and a pilot operated slave valve. When a solenoid is energised the pilot valve directs the flow to move the spool of the slave valve, thus changing the direction of flow in the hydraulic circuit.

What is pilot operated solenoid?

Pilot solenoid valves use the differential pressure of the medium over the valve ports to open and close. Also known as servo-assisted solenoids, these valves provide high flow rates and can operate at higher pressure and temperature ranges, with lower power consumption.

How is reverse flow possible in pilot operated check valve?

When backflow is desired, the pilot port is pressurized and the control element of the valve鈥攐ften a ball or piston鈥攊s forced off its seat. The valve is then open to flow in both directions, with a reverse pressure drop (aimed from outlet to inlet) sufficing to drive the flow upstream.

What are the different types of check valves?

The three main types of check valves we offer are ball, piston, and stop check valves.

What is the function of sequence valve used in hydraulic circuits?

The basic function of a sequence valve is to control the sequential operation of multiple actuators. Sequence valves have an actuator that diverts the medium to another part of the system to execute the next command in the programmed sequence.

What is the function of flow control valve?

The purpose of a flow control valve is to regulate the flow rate in a specific portion of a hydraulic circuit. In hydraulic systems, they’re used to control the flow rate to motors and cylinders, thereby regulating the speed of those components.
