The difference in terms of panels
The Louver is a kind of a shutter or blind that comes with horizontal slats that are angled to allow space for light and air but restrict rain and direct sunlight whereas dampers control the airflow. In HVAC systems, dampers and louvers are used to regulate the flow of air.
What’s a damper used for?
A damper is a valve or plate that stops or regulates the flow of air inside a duct, chimney, VAV box, air handler, or other air-handling equipment. A damper may be used to cut off central air conditioning (heating or cooling) to an unused room, or to regulate it for room-by-room temperature and climate control.
What is louver actuator?
Kinetrol Pneumatic Rotary Vane Actuator Blog
Louvers and dampers are used to stop or regulate the flow of air inside a duct, chimney, air handler, or other air handling equipment.

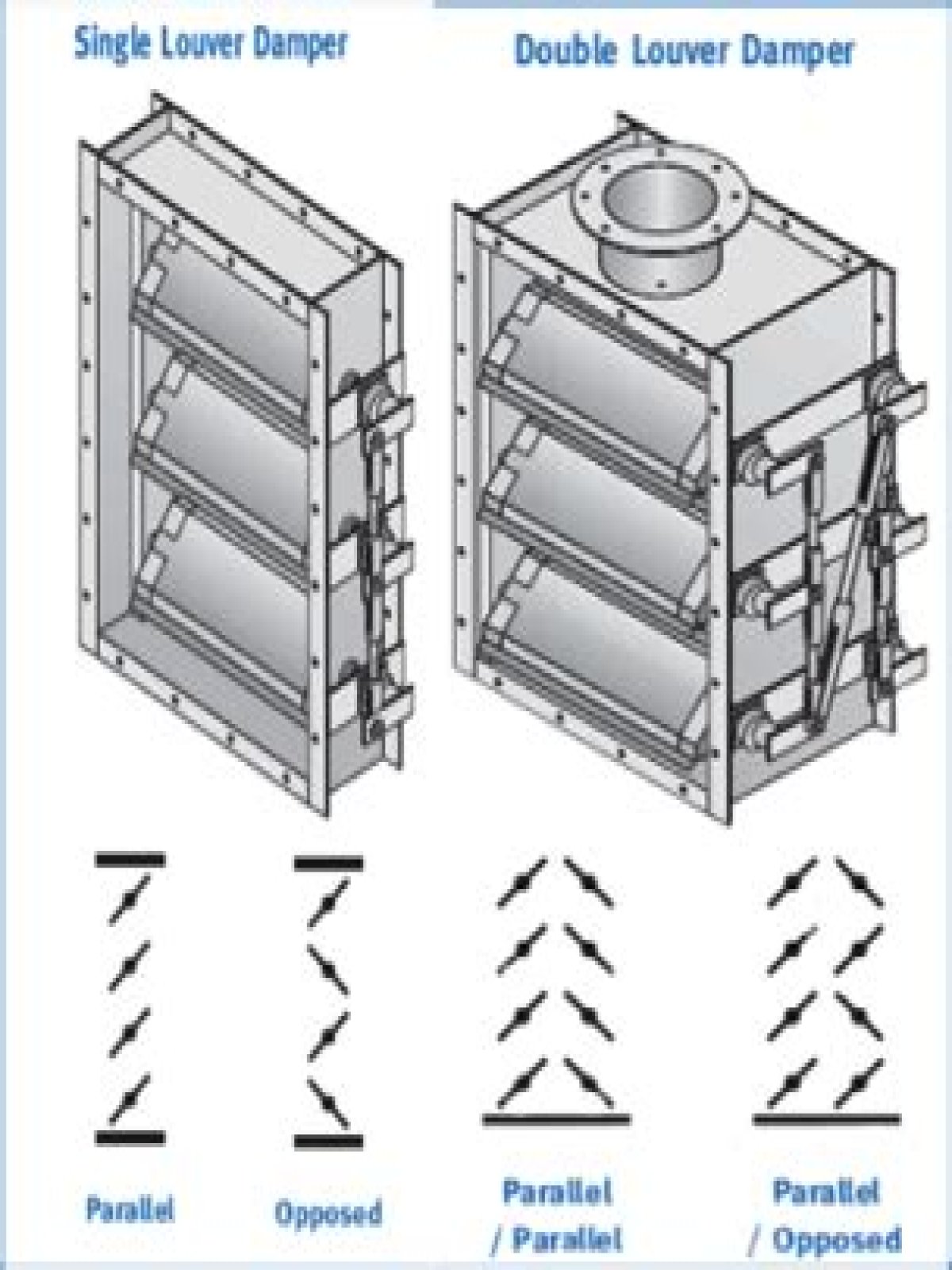

What is multi louver damper?
Description. Multi-louver damper is made up of various blades which rotate on their central shaft. All the blades are connected through linkages. The multi-louver damper can be used for isolating or regulating the flow with quarter turn movement of blade. These are two way flow damper.
Is a louver a vent?
A louver is a ventilation product that allows air to pass through it while keeping out unwanted elements such as water, dirt, and debris.
What is a butterfly damper?
Butterfly dampers are used to restrict the flow of materials in ducting systems where flow control and low leakage isolation are a priority. These dampers are especially useful in applications such as incinerators, balancing systems, control air systems, stack isolation, and scrubber systems.
What are the 3 types of dampers?
Types of Dampers in HVAC Introduction to Different Types of Dampers. Butterfly Flat Dish Damper. Blade Dampers. Guillotine Dampers. Louver Dampers. Inlet Vane Dampers.
Do all ductwork have dampers?
Every house is different. Some homes have no dampers at all. Hopefully most homes have a damper in each one of the supply ducts. Your home may have a supply duct go to the right and you might have one go to the left off of your furnace.
What is the difference between a damper and an actuator?
Dampers are the final control devices for almost all airflow in HVAC systems. Actuators are the interface between the control system and the mechanical system and are critical to accurate control.
What’s the damper actuator?
Part of a heating, ventilation, and air conditioning (HVAC) system, a damper actuator controls the opening and closing of a damper. Opening the damper allows air from outside a building to enter, in order to cool the interior, or it can close to contain the inside air.
What is damper actuator?
Damper Actuator is a motor-operated rotary actuator in which speed reducer, motor, limit switches, overload switches, opening transmitter and manual handling mechanism are united.
What is a roof louver?
Roof Louvers are the perfect way to allow moist and hot air to vent from the attic. You’ll want to space several of these vents across your roof near the peaks to most effectively move air through your attic.
What is an exhaust louver?
Oct. 20, 2016. A louver is a device consisting of multiple blades that permits the flow of air, but inhibits the entrance of water, rain, sand, and other unwanted materials.
What is a damper HVAC?
An HVAC damper (also called a duct damper) is a movable plate, located in the ductwork, that regulates airflow and redirects it to specific areas of the home. Dampers are typically used in zoning or “zone control” systems.
